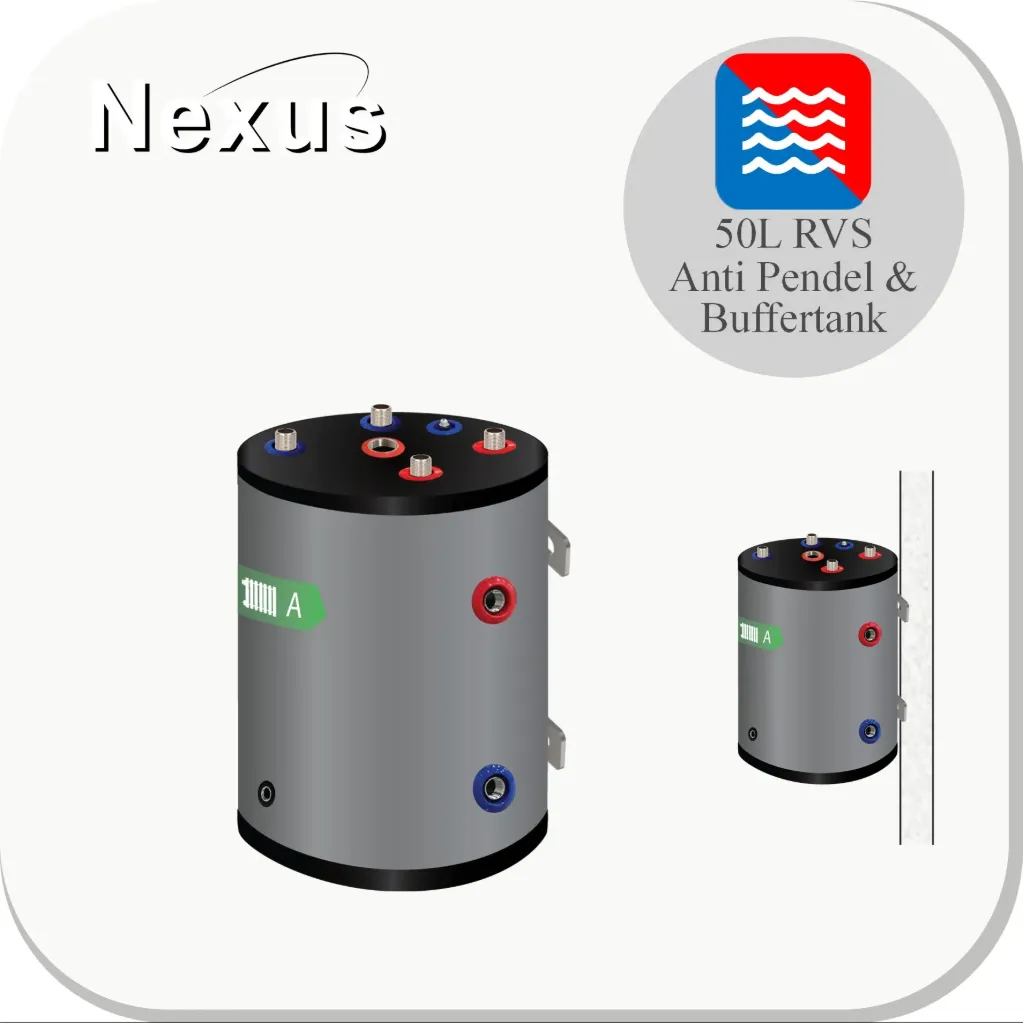

PWT-50/WM-C8

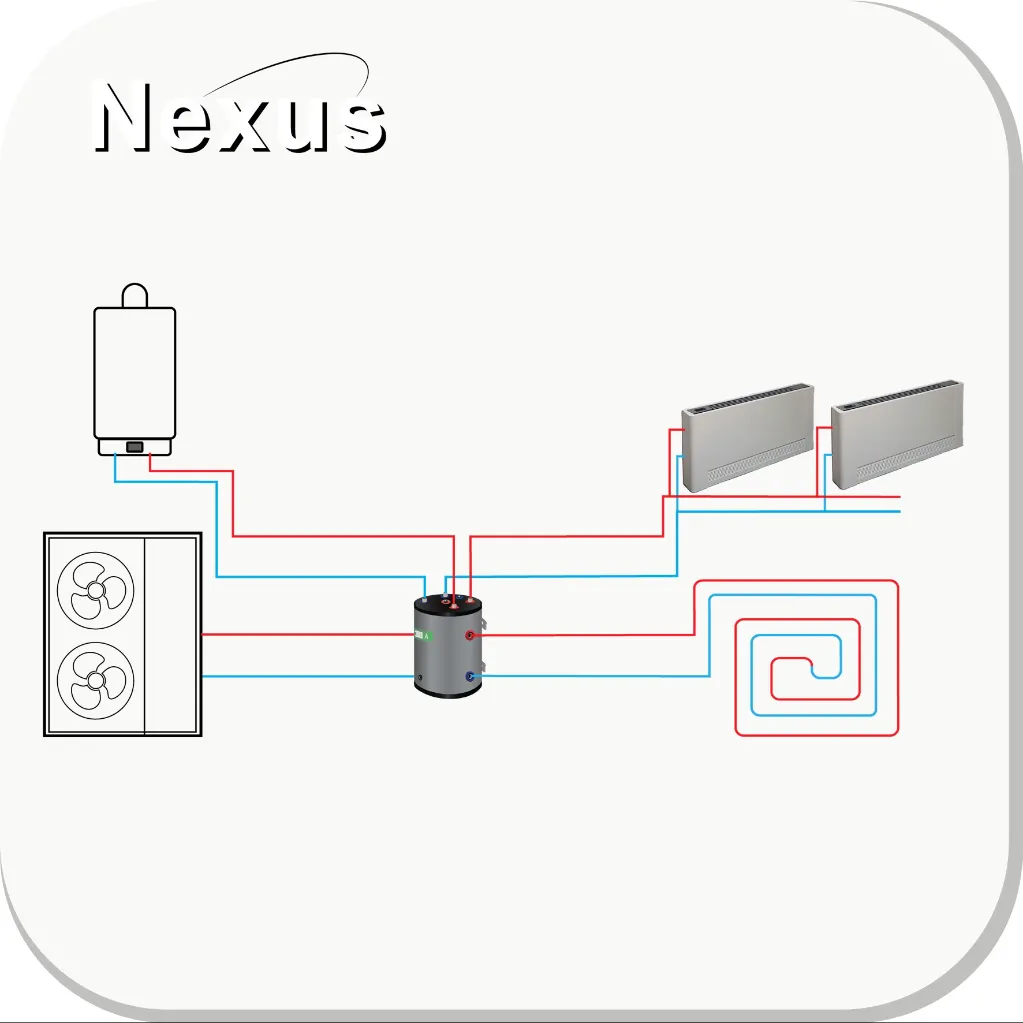

PWT-50 WM-C8 is a 50Liter Buffer/Low Loss Header

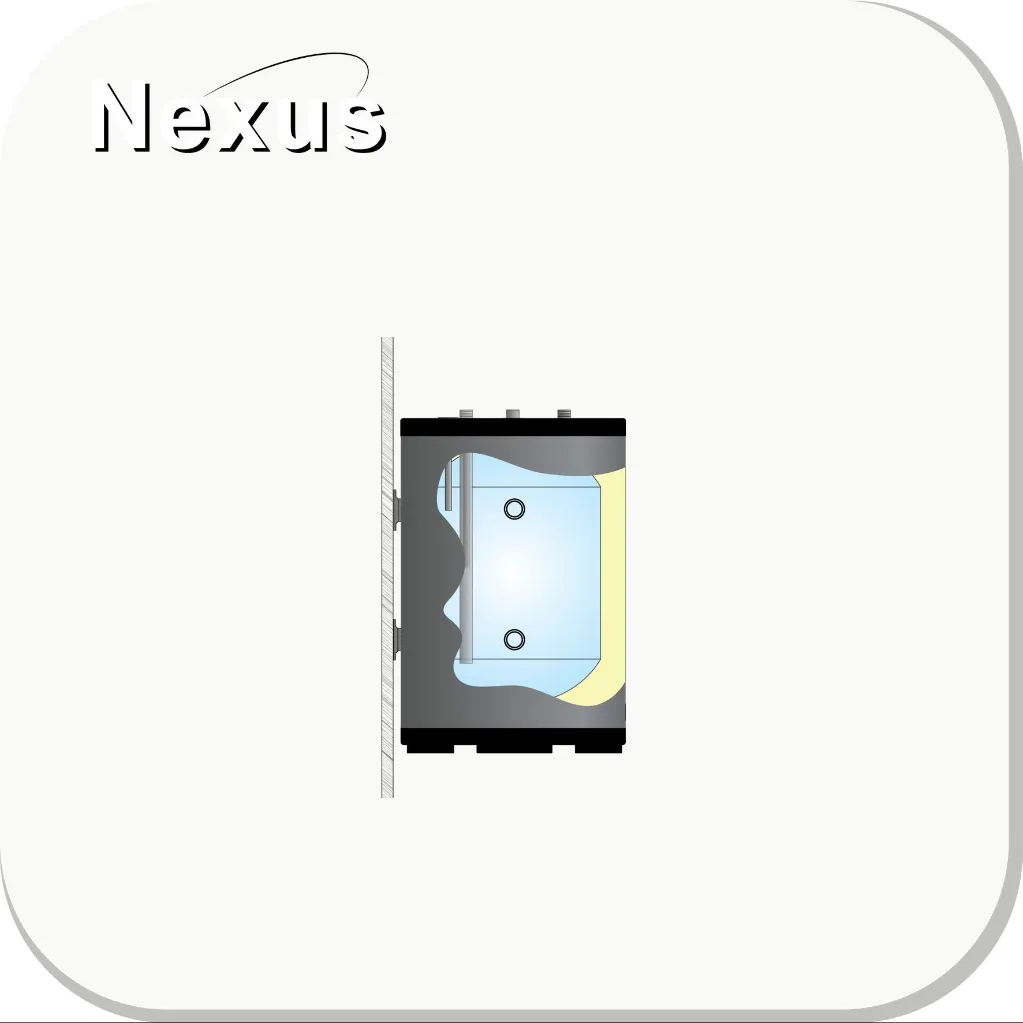

Floor standing & Wall mounted model

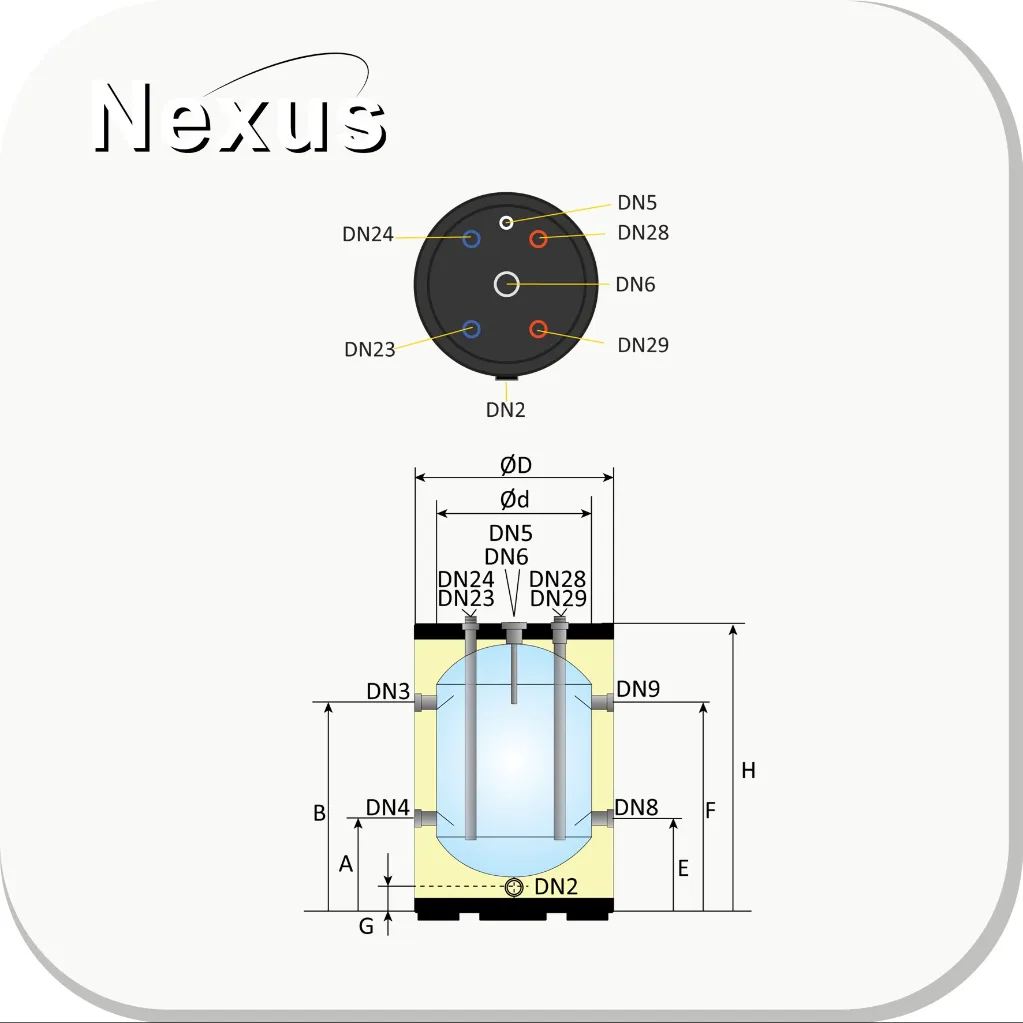

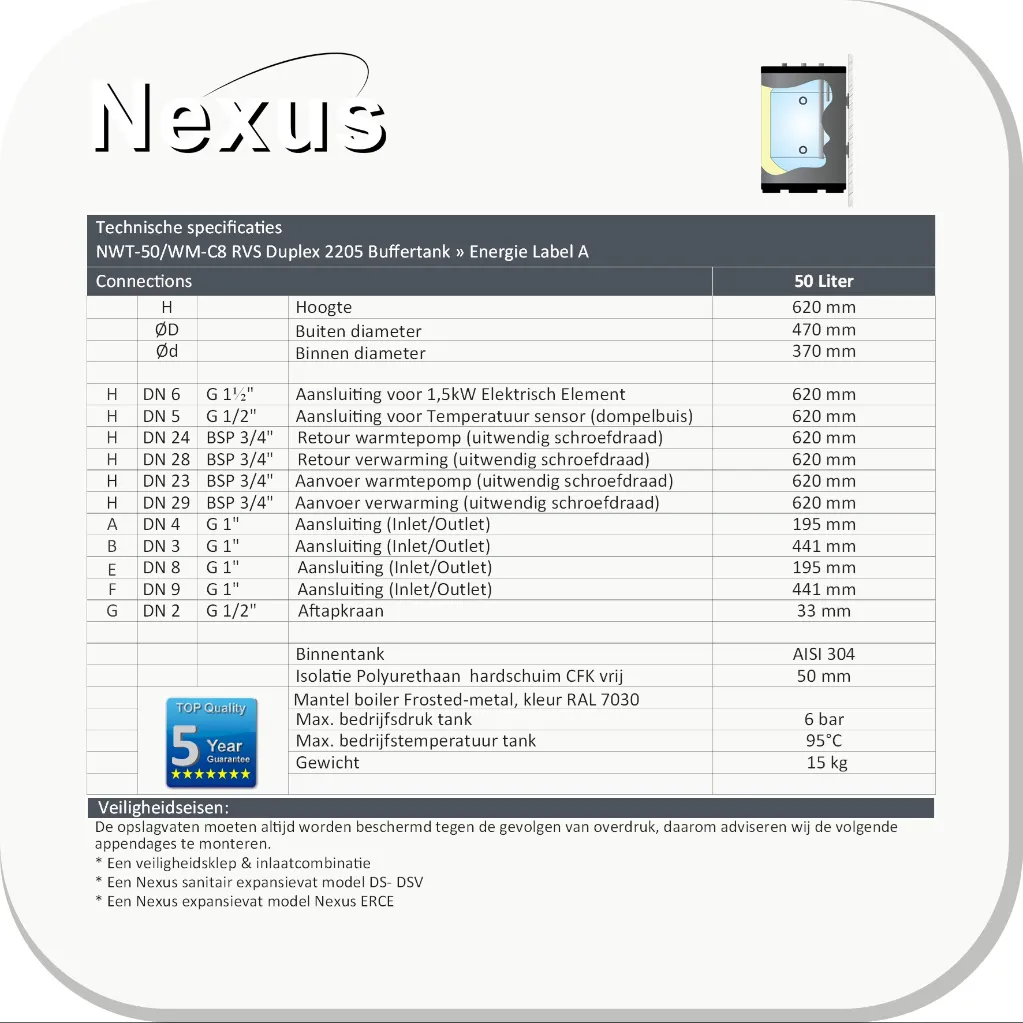

Specifications:

Height: 620mm

Inner tank: 370 mm, 1.0mm Stainless steel Duplex 2205

Outer casing: 470 mm Frosted steel

Insulation: 50mm Polyurethane foam 4x top connection BSP 3/4"

1x top connection Electric element 1 1/2" (air vent)

1x top connection sensor incl sensor tube

4x side connection: G 1" Stainless steel:

1x threaded plug 1 1/2" 2x threaded plug 1"

Weight: 17 kg

Color: Dark Gray

The NEXUS stainless steel buffer tanks comply with the production control according to the European Directive 2014/68/EU (module A). With the advanced welding technique, the buffers have an internationally high, durable quality level and a very elegant appearance and excellent resistance. Features of Duplex 2205 stainless steel: 22% Chromium, 5% Nickel, 3% Molybdenum. The 2205 alloy offers superior corrosion resistance compared to stainless steel 316L, especially in chloride environments. In addition, the mechanical properties, such as the yield strength, are approximately twice as high as those of stainless steel 304 and 316L.
